DESCRIPTION OF POLYMIIGO COMPACTO POLYCARBONATE SOLID SHEET
-Export to over 50 countries Polycarbonate Ceiling Material – Policarbonato Compacto
POLYMIIGO polycarbonate solid sheets policarbonato compacto are ideal for outdoor use with their great impact resistance.
The material presents an excellent balance with its physical properties, ensuring great clarity and light transmission and resistance to different temperatures.
The policarbonato board has UV protection togetherwith good acoustic insulation, are the ideal materials for both indoor and outdoor areas.
Our polycarbonate sheets and accessories are guaranteed for 10 years.
POLYMIIGO Polycarbonate solid sheet:

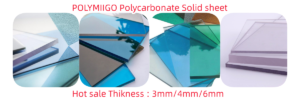

Popular thickness: 3mm/4mm/6mm
Dimension of POLYMIIGO policarbonato compacto:
– 1,22 x 2,4 mt (4ft x 8ft)
– 2,05 x 3,05 mt (7ft x 10ft)

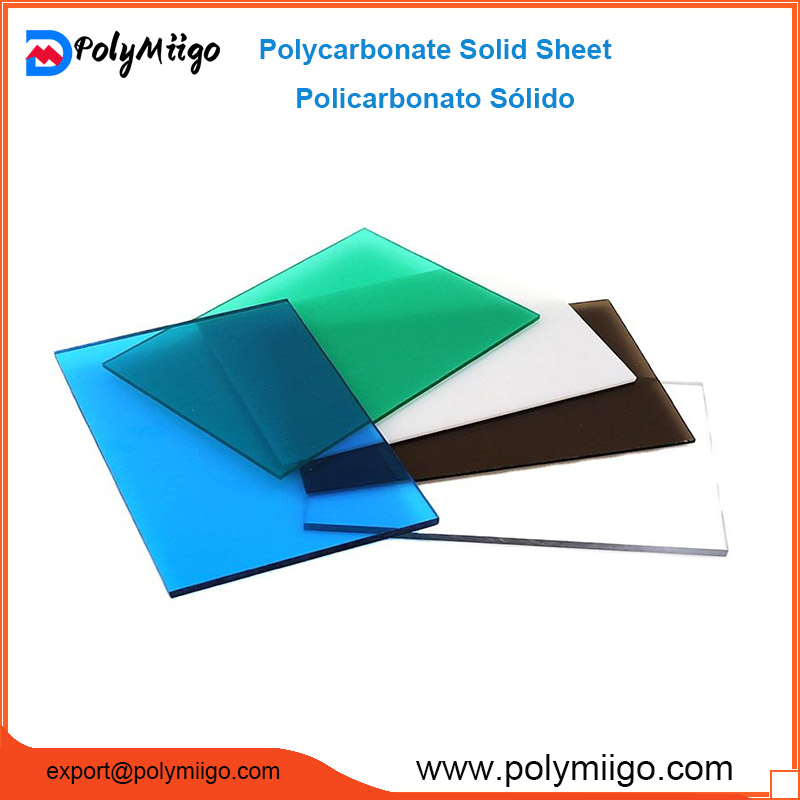

COLORS
-Transparent, Bronze, Light Blue, Blue, Green, Opal etc.
Special colors and specifications can be customized if needed.
Solid Polycarbonate Sheet POLICARBONATO COMPACTO Technical Data:
| Thickness (mm) | Weight (kg/m2) | Mini-bending radius
(mm) |
Width
(m) |
Length
(m) |
Colour |
| 1.1 | 1.32 | 234 | 1.22-2.1 | no limited, It can be rolled like 30 meter | Clear/Green/
Blue /Brown/ Opal，etc or customize |
| 2.0 | 2.40 | 360 | 1.22-2.1 | ||
| 3.0 | 3.60 | 540 | 1.22-2.1 | ||
| 4.0 | 4.80 | 720 | 1.22-2.1 | ||
| 5.0 | 6.00 | 900 | 1.22-2.1 | ≤5.8m for 20ft,
≤11.8m for 40ft |
|
| 6.0 | 7.30 | 1080 | 1.22-2.1 | ||
| 8.0 | 9.60 | 1440 | 1.22-2.1 |
| Impact strength | 850J/m impact strength of solid PC sheets is 250 times of glass,
20-30 times of PMMA sheet |
| Light transmission | 80%-90% for different thickness of clear color |
| UV resistance | 50μm UV layer, can filter 99% ultraviolet radiation in sunlight |
| Coefficient of thermal expansion | 0.065 mm/m°c |
| Service temperature | -40°c to 120°c |
| Heat conductivity | 2.3-3.9 W/m2 °c |
| Tensile strength | >60N/mm2 |
| Flexural strength | 100N/mm2 |
| Tensile street at break | >65mPa |
| Heat deflection temperature | 140°c |
| Soundproof index | 4mm thickness–27dB,5mm–28dB,6mm–29dB |
CHARACTERISTICS
-Heat insulation and keep energy
– Anti-ultraviolet radiation, aging resistance
– Great impact resistance,high strength and stiffness
– Hard-combustible of B1 material, self-extinguishing without fire
– Lightweight and high environmental, difficult to break
– Great clarity and light transmission.
– Climate resistance.
– Saving energy
– Easy to handle and install.

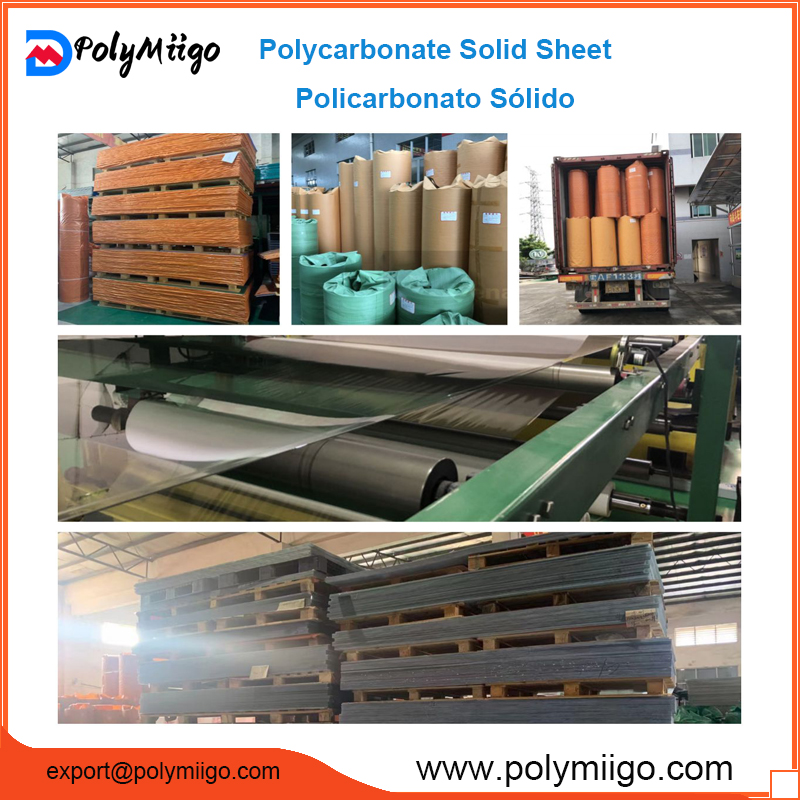

PHOTOS OF MIIGO POLYCARBONATE SHEET LOADING AND PACKAGES:
APPLICATIONS:
– Stadiums, schools, hospitals, factories.
– Illuminated skies for terraces, swimming pools, greenhouses, loggias.
– Sheds, patios, decks.
– Garages, parking lots, machinery protection.
– Shower doors, bathrooms.
– Partitions for offices, furniture, storage pieces.
– Stands for exhibitions, advertising, signage, coverings.
